MAKE IT SCALE, JULY ’21: AUSTER AUTOCRAT

by

Danny Fenton concludes his build of a DB Sport & Scale semi scale kit.

I used a hinging technique that I first saw Brian Taylor use. I am sure it has been around since before that, but it produces a beautifully accurate, precise and free moving hinge, with the bonus that the piano wire hinge pin can be removed to allow disassembly right up until applying the final paint.

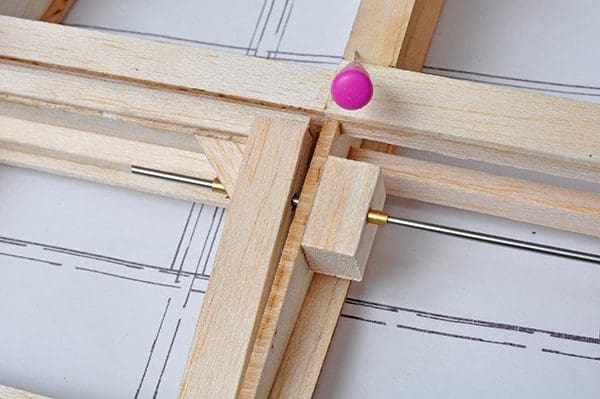

july21scale2

Advert

Enjoy more RCM&E Magazine reading every month.
Click here to subscribe & save.

Hinging is done using piano wire and brass tubes as bearings.

july21scale3

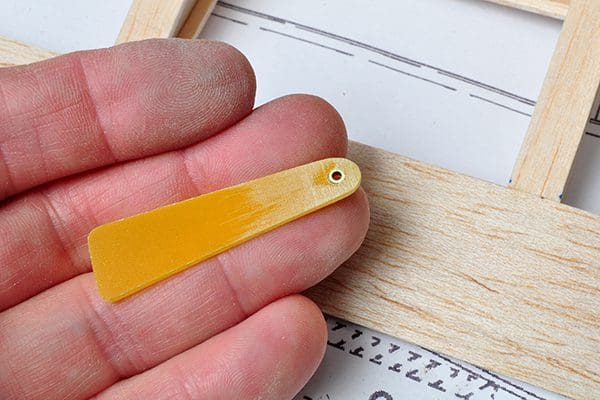

Hinge points are made from 1.6mm glass board with small brass bearings. They are fixed with thin CA, which works well with glass board.

The hinge consists of a length of piano wire, with close fitting sections of brass tubing fitted to the wing and aileron as bearings. A length of PTFE tubing is used to ensure that the piano wire will always find its way through the aileron with little faffing when trying to find the bits of tube at either end!

july21scale4

Advert

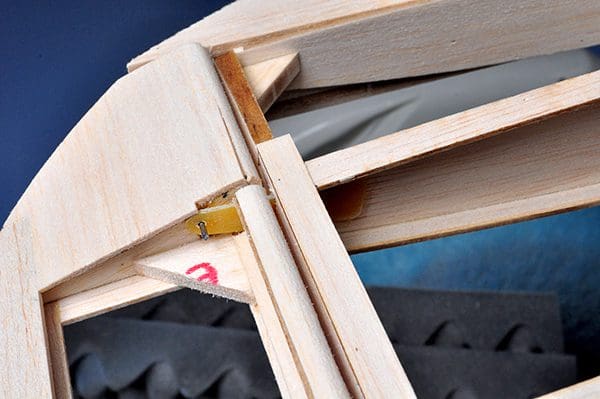

Piano wire hinge is not the final full-length section but a short test length.

july21scale5

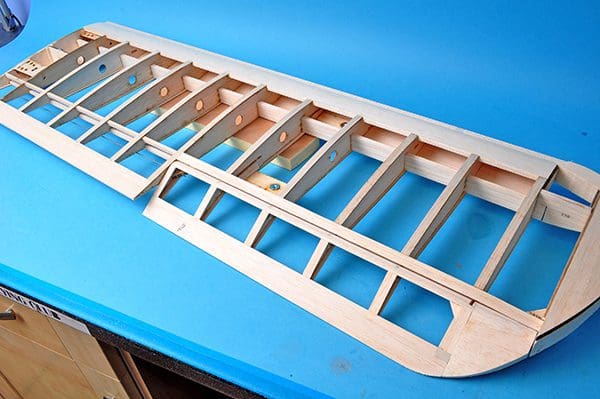

The completed aileron to wing, showing the wing shroud balsa. This will later have a 64th additional shroud.

The hinge points are made with sections of glass board, like circuit board but without the copper surface. Mick Reeves, amongst others, sell it. I like to use little stubs of the same brass tube as hinge re-enforcement.

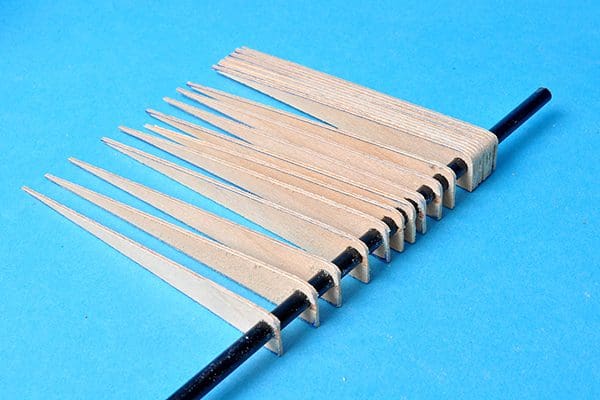

july21scale6

Advert

Triangles were fashioned from 32″ ply and slid onto a 6mm carbon tube spar.

july21scale7

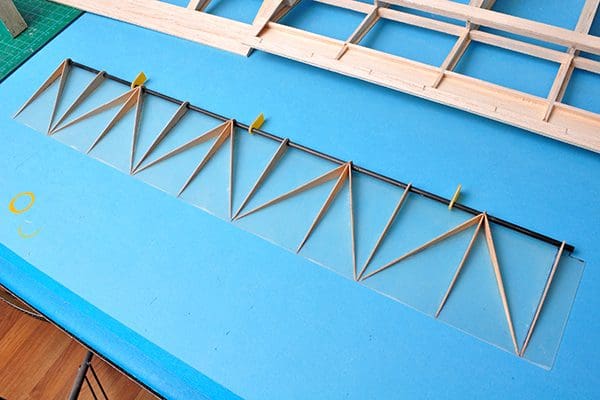

A section of fibreglass board, around .3mm thick was used as the base for the flap.

The flap ribs were spaced out along the spar, with three 1.6mm glass hinge points to avoid the existing wing ribs, etc. When I first made this, it was not rigid enough. I added more diagonal braces and although not quite scale they worked a treat. The flaps are split and therefore not thick by any measure.

july21scale8

Advert

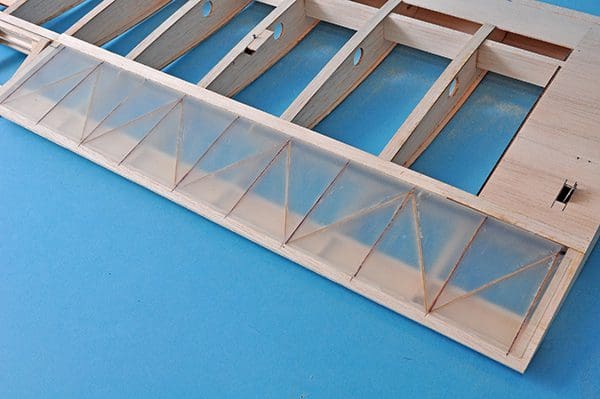

A finished flap. You can still see the spring steel release lever in this picture, yet to be removed.

july21scale9

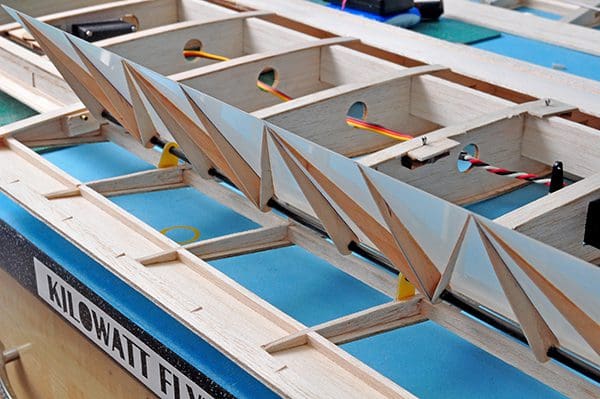

Flap hinging and fitment.

The flaps were a bit of a fiddle to fit and align. The other problem was they had to be fitted permanently quite early on and could not be removed to allow covering. I will have to suffer this later. You can see how I removed a good section of the rib and sheeting from the wing underside to allow this. I removed the excess after the wing was built to avoid distortion and it has worked well as the trailing edge has retained rigidity. The diagonals, though not scale, look like they could be, so I was quite pleased with that.

july21scale10

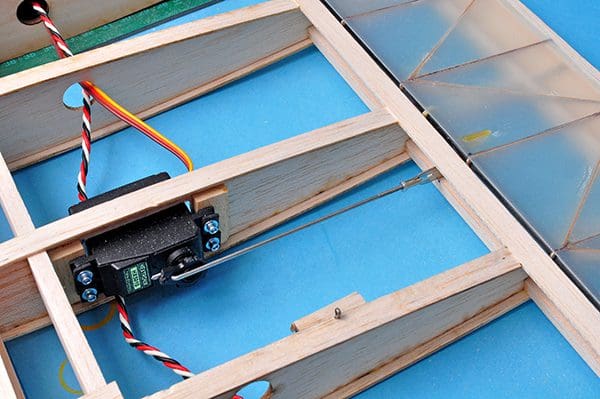

The horns on the flaps are very short due to the restrictions in flap thickness. The innermost hole is used on the servo arm.

july21scale11

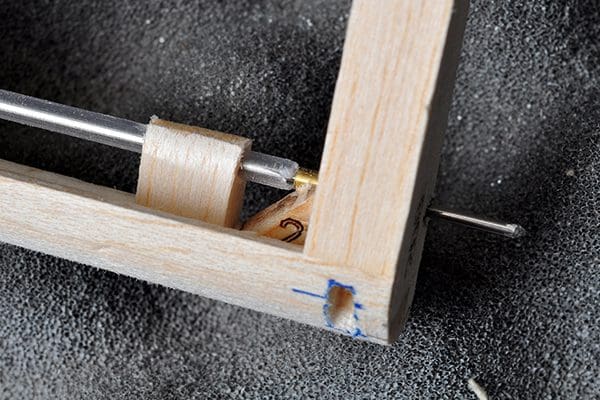

The PTFE tube is visible here, which aligns the piano wire to the bearings for fitment.

I mounted the aileron and flap servos the same way. Small sections of 3mm ply were used to provide a mount, with holes cut in the ribs. Now I know a lot will say, what about servo access? Well, this is where I deviate from convention as I build my servos in permanently. So far, I have never had to cut a wing open to replace one – I’m probably tempting fate now!!
The PTFE tube I use as a guide for the piano wire hinges is from www.hyperflight.co.uk and is available in many sizes. This is a worthwhile site to bookmark.

BODY TALK

The fuselage sides are made up of several different sizes of strip wood, which is all included. A word of caution here – you may get a bundle of 6mm square, but only one strip is numbered. Number them all!

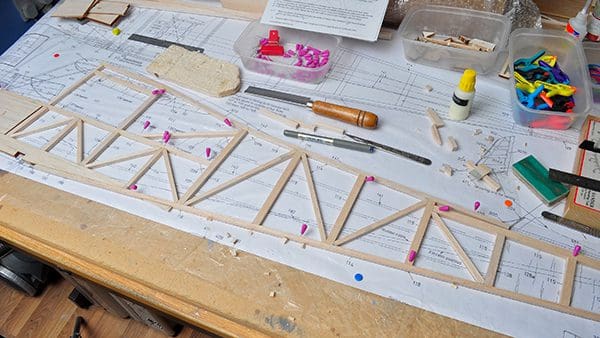

july21scale12

The fuselage is not very well explained in the instructions and has a critical area at the top of the cabin roof.

Also, if you cut the number off a strip then write it on the remainder. The instructions say use 238 for example, not use 6m x 6m.

A gotcha area is the splices at the top of the cabin, these need to be really well made.

july21scale13

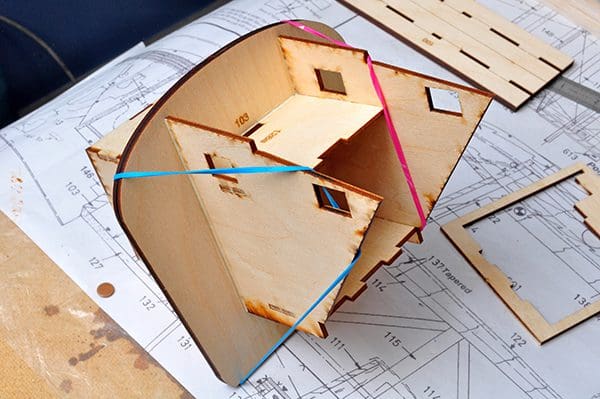

Fuel tank box assembled.

The fuel tank box is straightforward and the laser cutting in this area has obviously been revisited and is spot on. I used Titebond III for most of the ply joints.

july21scale14

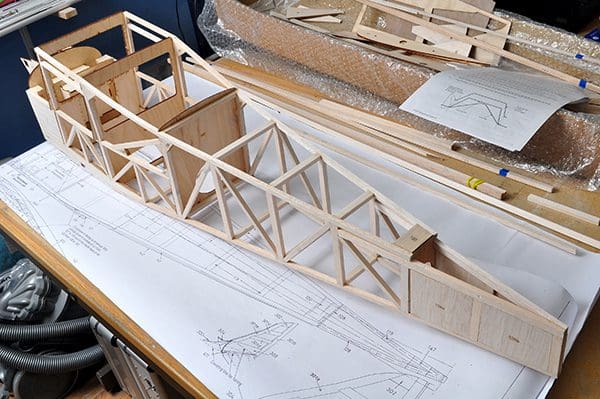

Formers and other bits are straightforward, with the tail pulled together over a straight line on the plan. The infills at the tail might have been better left until later as they restrict access to the elevator horn.

The fuselage goes together well but you have to pay careful attention to thickness of the longerons as they change. Also, the chamfered sections are not very clear. Patience is the answer here.

july21scale15

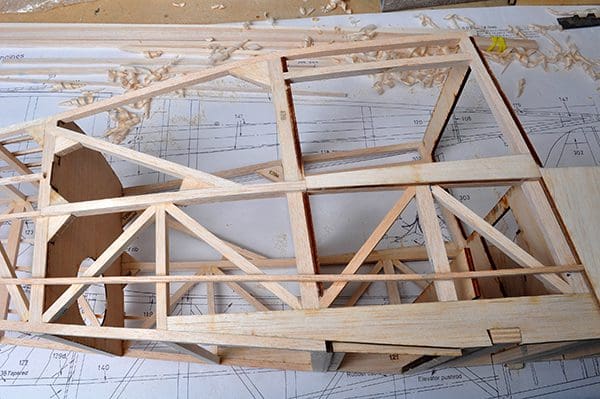

Lots of little gusts are added, if you look carefully, the one at the top left of the diagonal is upside down and does not fit the bulkhead notch. Whoops!

The fuselage is straightforward, and good and rigid when all the bracing is added. I drew a line on the bench and pulled the sides in so that everything was straight.

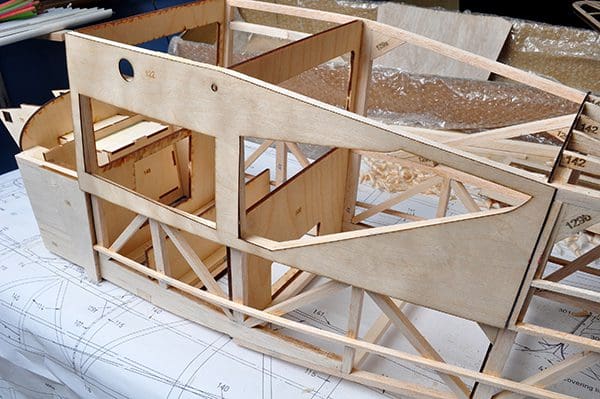

july21scale16

Ply sides added.

When the plywood cockpit sides are added care must be taken to make sure that all the underlying sections are chamfered so this sits flat against the adjoining structure. I feathered the rear edge of the ply so that it blended into the stringers better. This is well worth the extra effort.

IDEAL ENGINE

I had been looking in the classifieds for some time and eventually I emailed Laser direct in an attempt to purchase an 80 but one wasn’t available. So, I purchased a new Saito 82 from a modeller who was in the unfortunate position that his club site had been lost and he could no longer fly. I do hope the situation improves for you, John and thanks for the engine.

july21scale17

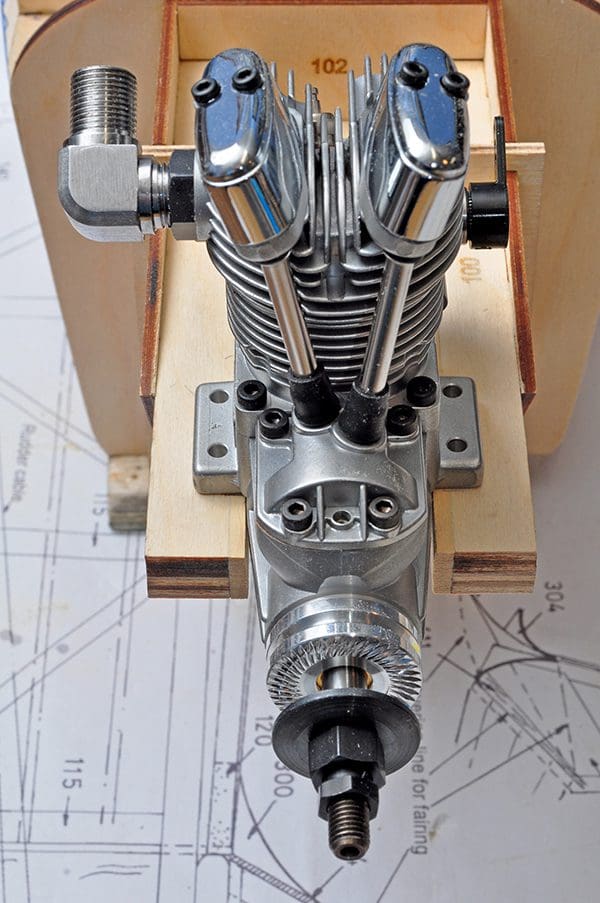

I was trying to find a Laser 80 but failed, so I bought a Saito 82 for the grunt work.

Shortly after the deal was done on the Saito, Alex Pettigrew emailed me and offered me a Laser 80 for a terrific price. Thanks, Alex. But the fuel tank height and rails are set for the Saito so I will save the Laser for another model.

july21scale18

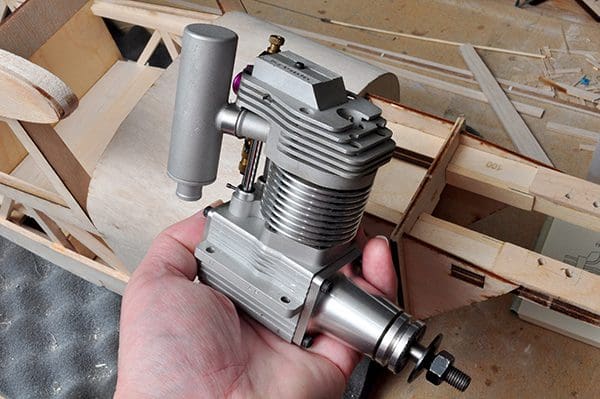

The Laser sold to me at a terrific price. Thanks, Alex!

The parts that make up the section under the instrument coaming meant the section was not flat and it had a nasty compound curve. I sanded that compound away so that the ply had a chance to conform to the underlying structure. I used many more bands than the picture shows.

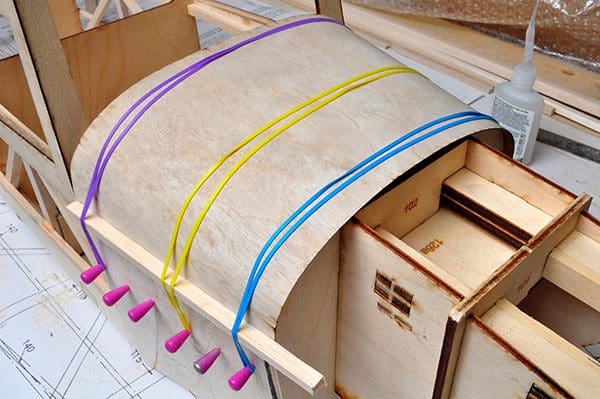

july21scale19

Top ply instrument shroud was difficult to fit.

july21scale20

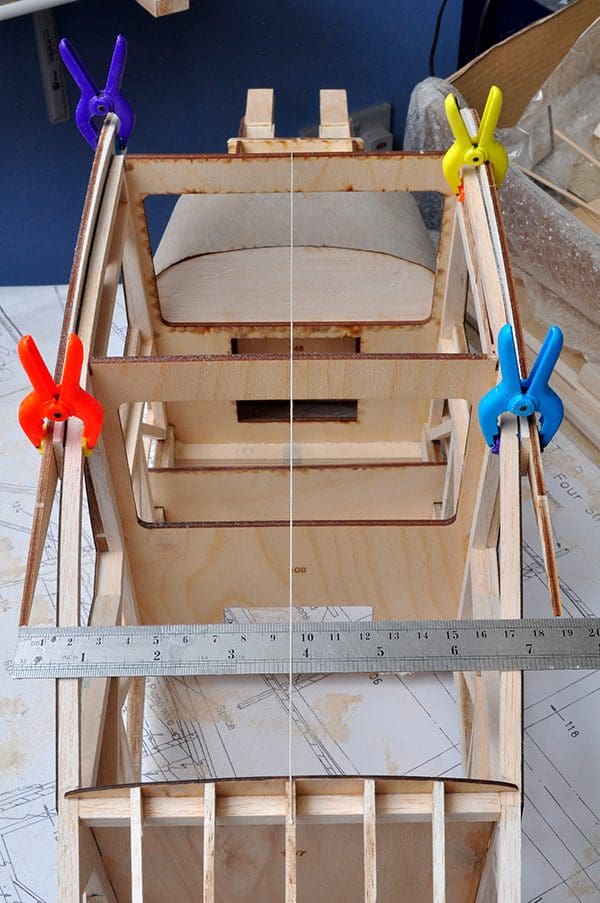

I strung a thread from the nose to the tail to help with stringer placement.

A thread indicating the centreline of the fuselage was used to ensure that the wing fairings were equidistant, and this meant some sanding of the underlying structure. But all was good in the end; it was important that the front and rear distances were equal, or wing sweep would be introduced.

july21scale21

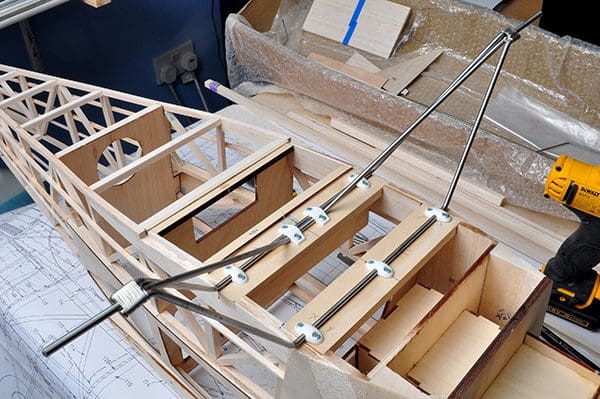

Undercarriage was made to plan but watch this space as it may get altered.

july21scale22

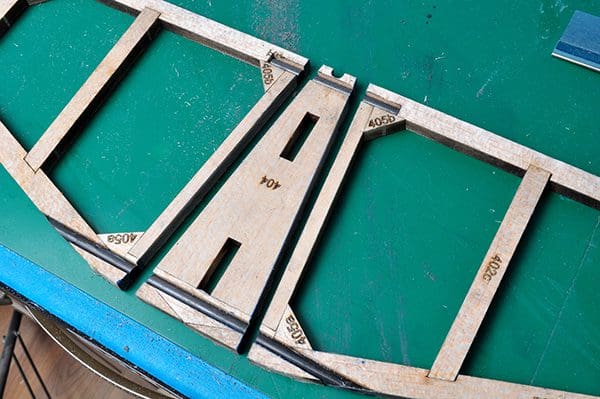

The tailplane was fitted with carbon tube and then cut into three sections. All will become clear when covering.

I had hoped to show the covering as well in this session, but you will have to catch up with my experiments with Ceconite the next time we share a digestive.

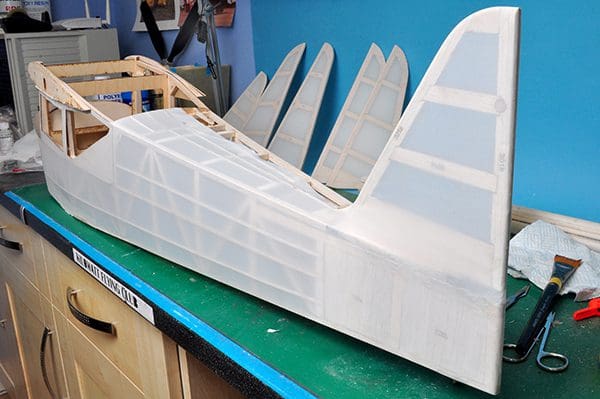

july21scale23

Sneak peek of the covered fuselage.
